November 24, 2009

Thinking Outside the Box

Dan Tucker

Running a transmission shop has really changed over the past 30 years. The biggest challenge I have seen in the last few years is determining if the problem causing a customer's compliant is inside the transmission or a problem with the vehicle (or should I say, a vehicle control system?) Many shops diagnose the compliant, and if they find the problem to be outside the transmission, they 'punt' the job. Our shop took a little different approach years ago and established a motto. "We will fix your transmission complaint from the battery to the tires". It seemed like the American thing to do, to be a one-stop, get-your-transmission- problem-fixed, and not be sent back and forth from shop-to-shop, shop. While it felt like the right thing to do, I can recall many times we have found ourselves off on an island and praying for a miracle fix.

Who would have thought years ago that we would glue a rear view mirror back on the windshield to get a transmission back to shifting? I know that sounds ridiculous, but that is just one example of a real fix to real problem we have encountered in our shop. To briefly cover the rear view mirror repair, I will explain. The vehicle was a 1995 Ford Bronco. The customer complained it quit shifting all at once. You know the type, "it is stuck in 1st gear". While the customer was filling out the paperwork to leave the vehicle with us, he asked if we could glue his rear view mirror back on the windshield, while we were fixing his transmission. We have all seen an inside rear view mirror unglued by the hot sun before. I explained to him nicely that we didn't do that type of work. He said "Not a problem, I'll get it done later at a general repair shop."

After the customer left, I hopped in the vehicle and pulled it up in a bay, noticing that the speedo cluster's odometer was not lit up, nor was the speedo working. I grabbed a scanner and sure enough it had a 452 loss of speedo signal code. I thought blown fuse, because the odometer was not working. I checked the fuse and it was blown. Next stop was to see what else is on that circuit. Fords are bad about 'piggy backing' several things on one fuse and this was no exception. I looked at all the things on the same circuit as the cluster: 4WD shift lock, Electronic Shift Control Module, Air bag module, and then I saw Compass/Outside Temperature Module. I looked on the floor, and sure enough the rear view mirror that the customer had asked me to glue back on had a compass in it. I looked up in the headliner, and the wiring that used to run to the mirror was naked and had a spot that looked to have shorted to ground. Most likely, it shorted while the mirror was hanging by the wires, before it fell to the floor. I repaired the wires and yes, you guessed it, ordered a rearview mirror glue repair kit and glued the rearview mirror back in place. I popped a new fuse into the fuse box and the vehicle was fixed.

The hard part was humbling myself and calling the customer to tell him we had found his problem and corrected it, and oh by the way, while we were at it, we went ahead and glued the rearview mirror back to the windshield, because that was what had caused the problem.

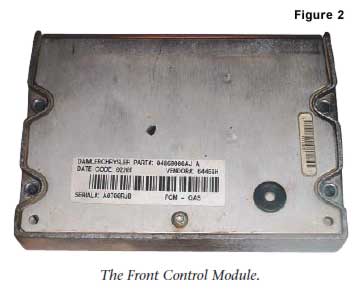

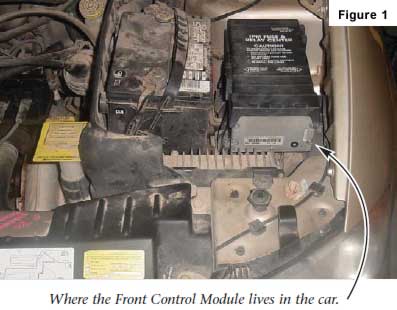

We had a similar job come in this week, but this vehicle had already been all over town trying to get it fixed. I used to like these kinds of challenges, but my financial advisor has warned me that 'punting' jobs like this might be more profitable. The vehicle was a 2001 Dodge Caravan. The complaint, it was stuck in 2nd. The TCM would not communicate with the scanner. We checked the transmission relay and the TCM was not sending voltage to the relay. I had one of the guys lift the vehicle so we could drop the TCM down and test further. This TCM is in a bad environment. It is under the battery and in front of the driver's front wheel. It is a high failure part, with battery acid and water getting into it. We tested for power and ground at the appropriate pins. The TCM had grounds and battery voltage but we didn't get any ignition voltage signal at pin #11. I noticed that the wiring diagram listed the #11 pin at the TCM as "FCM offrun- start", instead of the normal "Ignition" source we are use to seeing. I thought, what is FCM? I did a little research and found out it was Front Control Module. It is a simple computer that controls most of the front of the vehicle's body circuits. Now, what does it have to do with the transmission? The FCM has the responsibility of sending 12 volts through the Integrated Power Module (IPM) to the TCM when the FCM detects that the driver has turned the key on. Sort of a long way around for getting the Ignition voltage to the TCM, but that is the way it was designed. We checked the IPM (what most of us think of as the fuse-relay box) and it tested OK. We ordered an FCM and installed it, flipped the key on, and it sent 12 volts to pin 11 on the TCM. The TCM booted and the van was as good as new. This is an example of testing a system that is similar to those we have worked on many times before, only to find a completely different fix than we expected. As vehicles change and we see more Controller Area Network systems, we will continue to be forced to think outside the box.

Dan Tucker is owner of Tucker's Transmission in Pine Bluff, Ark., and a member of the TASCForce® (Technical Automotive Specialties Committee), a group of recognized industry technical specialists, transmission rebuilders and Sonnax Industries Inc. technicians.
